TS6
| Number | 0818 |
| Name | TS6 |
| Type: | Steel shrimp cutter |
| Dimensions | 18.99/17.30 x 5.27 x 1.40 |
| Build in | 1988 |
| Price | € 0 |

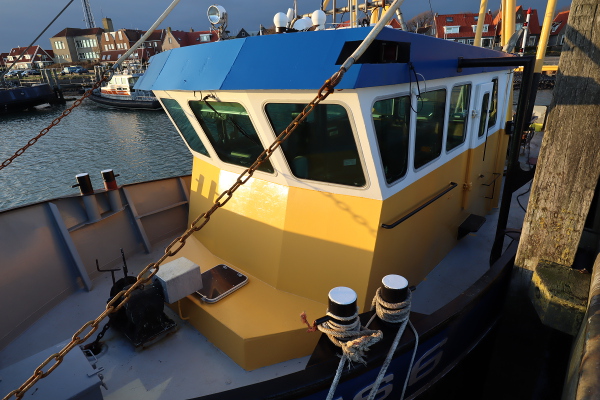

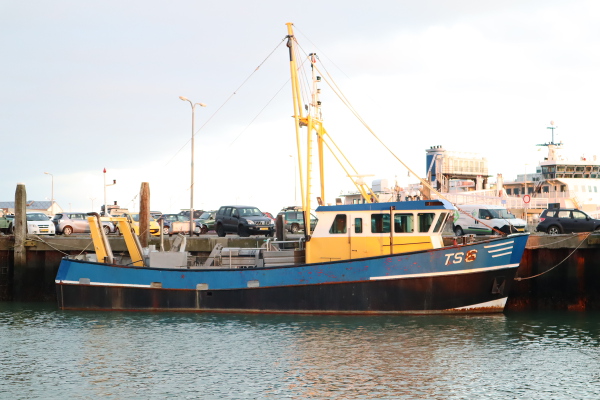

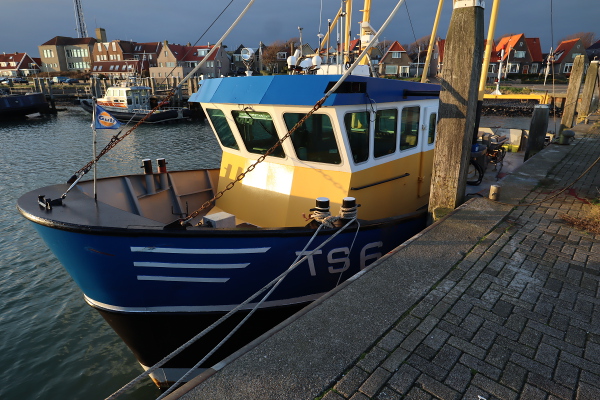

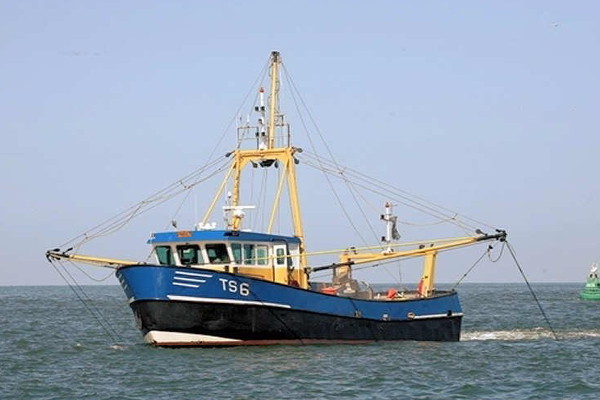

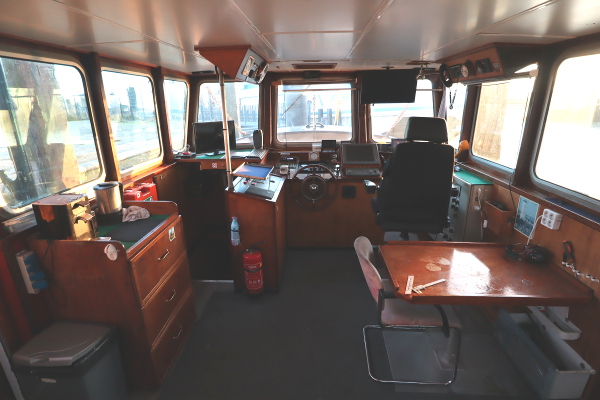

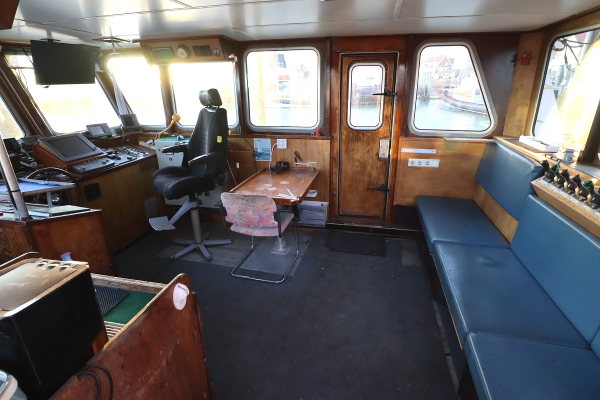

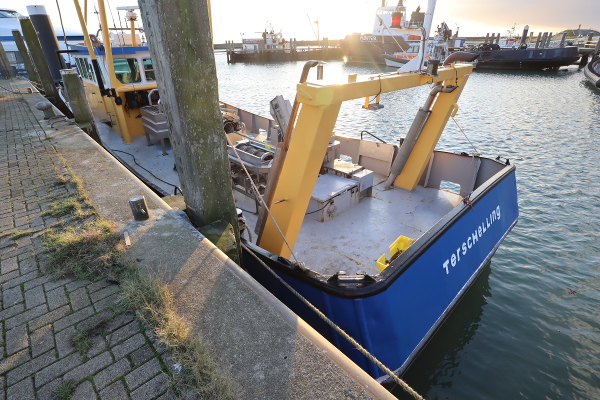

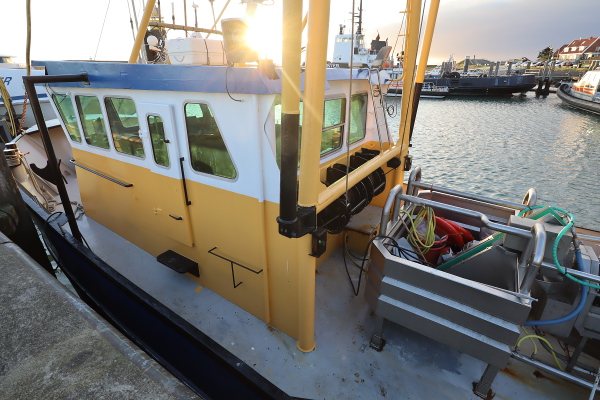

Shrimp cutter, fishing boat TS6, by. 1988, dim. 18.99 x 5.27 x 1.40m. Doosan 300 HP diesel. Built in 1988 at Shipyard Harlingen. The main engine was newly installed in 2012. Large clear aft deck with complete shrimp processing line. Spacious bridge with various nautical equipment and access to the front ship with galley and 4 berths.
Layout: Peak, stay, net hold, fish hold, bunkers, engine room.
| General: | |
| Built at | Shipyard Harlingen NL |
| Frame shape | Nod frame, welded |
| Displacement | 56 BT |
| Ballast | Ballast tanks |
| Hull | Steel |
| Deck | Steel |
| Deck house | Steel |
| Windows | In aluminium |
| Steering | Hand, hydraulic + electric |
| Rudder | Double plate |
| Dry-dock | 2021 |

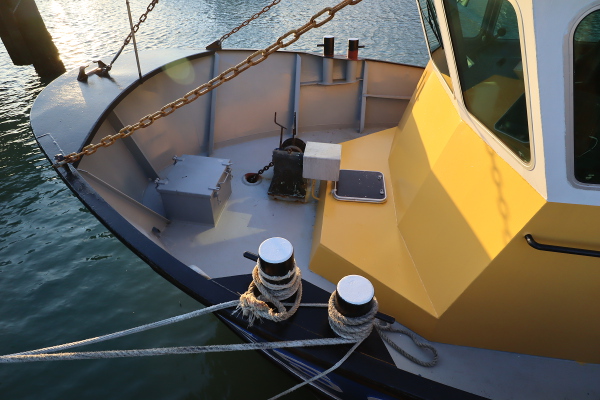

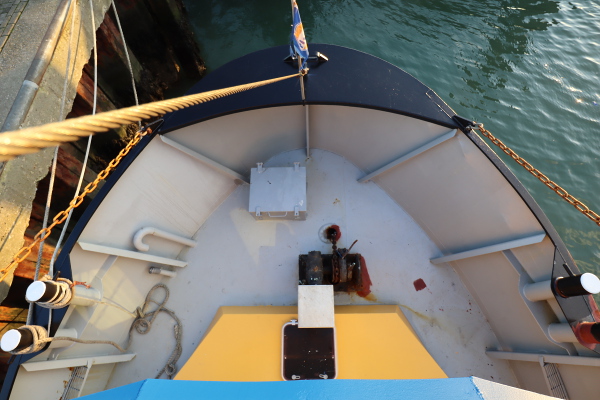

| Anchor winch | Chain, 380V |

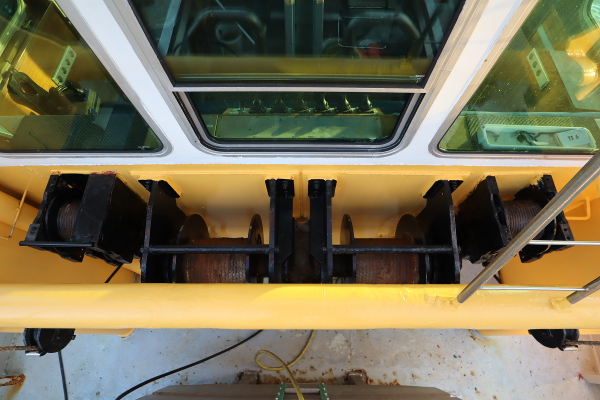

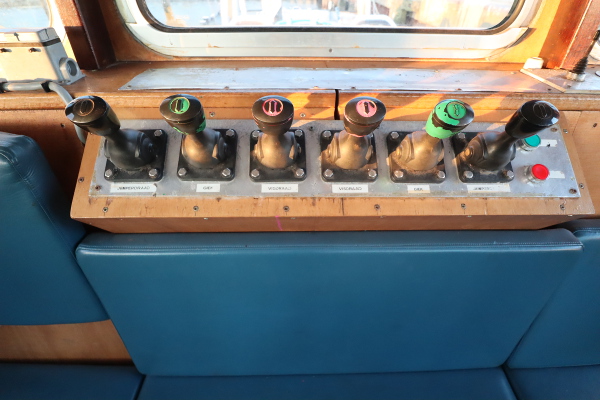

| Fish winch | 6 separate hydraulic drums |
| Pumps | Several |

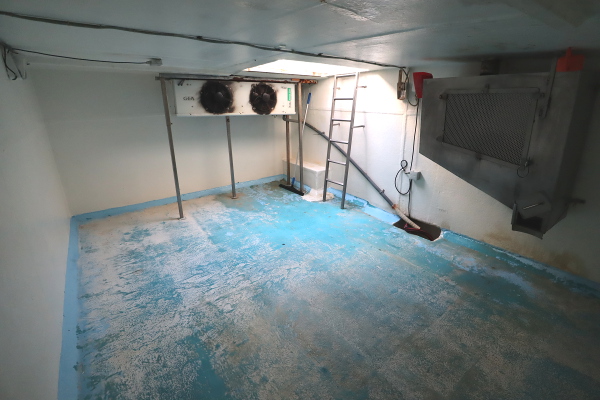

| Stores | Net hold, fish hold 27 M3 insulated |
| Cerificates | NO CVO |
| License | Special fish document 249 PK, 56 BT & 249 |
| KW MFL 2, list 1 | |
| Engine: | |

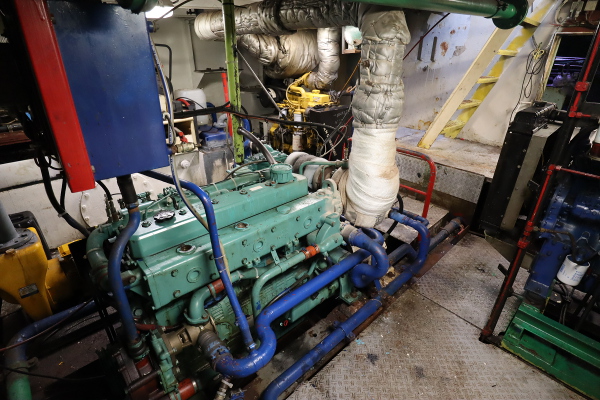

| Brand | Doosan |
| Built in | 2012 |
| HP | 300 HP |
| Cylinders | 6 |
| Fuel | Diesel |
| Fuel tankage | 5.000 litres |
| Cooling | Bin |
| Gearbox | Twin disc |
| Propeller | 4 blade |
| Bow thruster | Nozzle |
| Lubrication | Grease, automatic |
| Speed | appr. 8 knots |

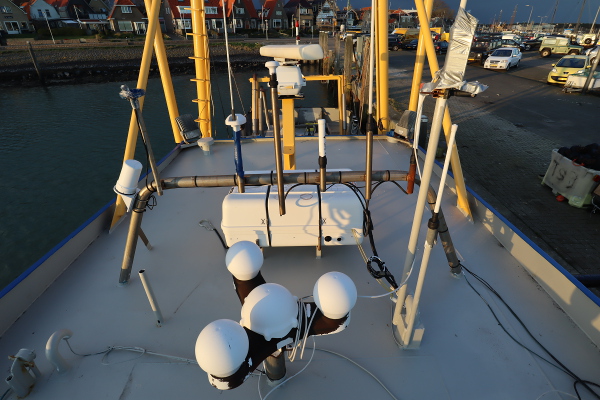

| Navigation: | AIS Furuno |
| VHF | 2 x Furuno RT2048 |
| Radar | JRC day light radar |
| Compass | Liquid + switch compass JRC |
| Depth meter | Furuno |
| GPS | 2 x Furuno GP39 |
| Auto Pilot | Robertson AP45 |
| Plotter | Yes |
| Lights | Navigation and search light |
| Interior: | |
| Headroom | Wheelhouse 2.01 - front ship 2.05 |
| Wood work | Varnished wood |
| Floor | Laminate, carpet |

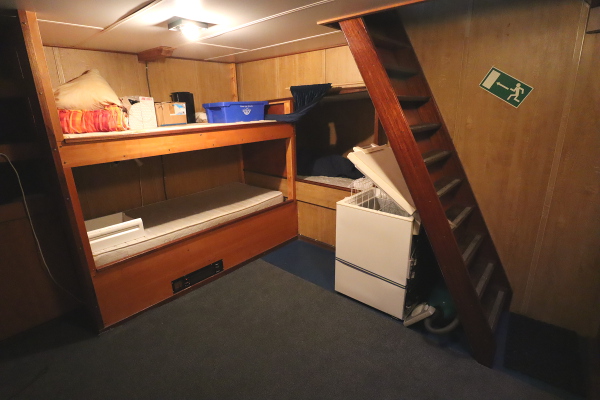

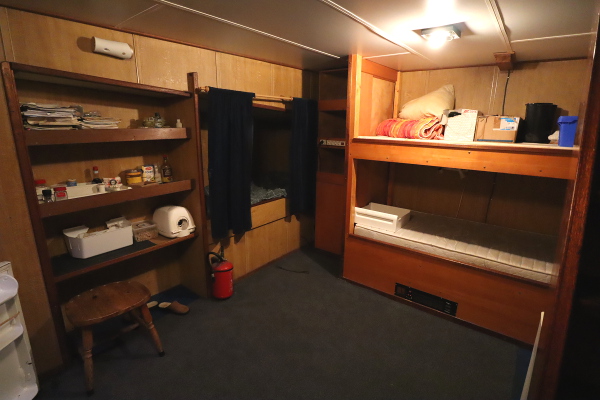

| Berths | 4 cages |
| Audio | T.V. and radio |
| Heating | Electric |

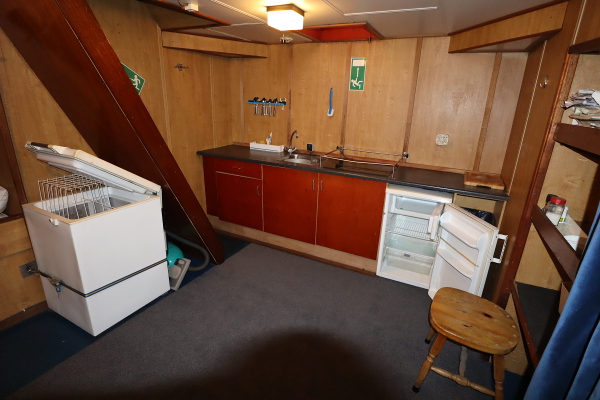

| Cooking | 4 plate elektric |
| Refridgerator | Yes + freezer |
| Water pressure | Electric pump |
| Water tank | 1.000 litres |

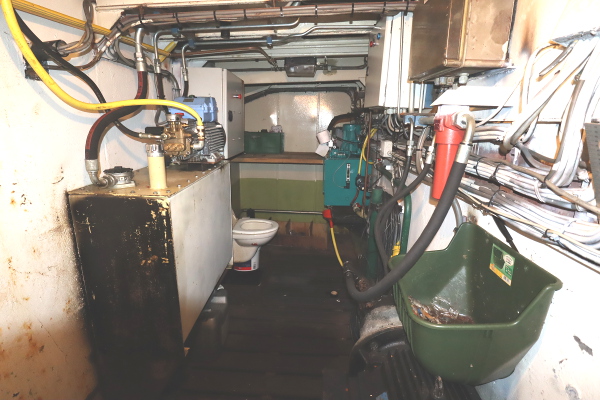

| Toilet | Yes, outboard system |
| Electric: | |
| Voltage | 24-220-380V + shore power |
| Batteries | 6 |
| Battery charger | Victron 24V 100 amp |

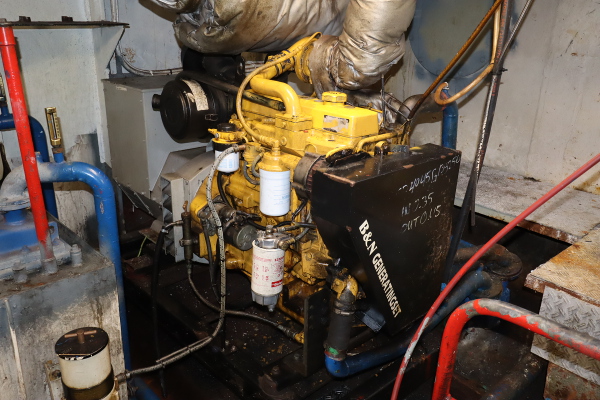

| Generator | Perkins 42.5 KVA 380V + John Deere 380V |
| Other: | |
| Alarm system | On the engine |

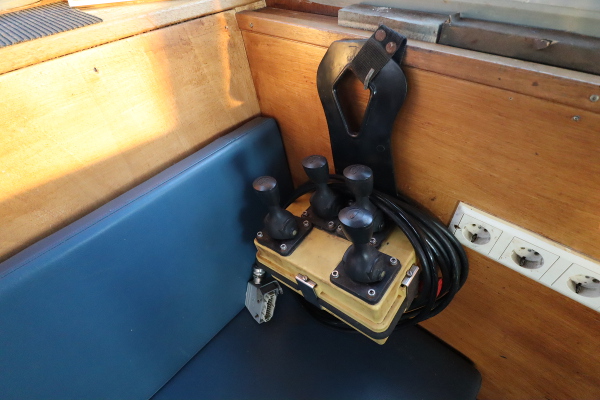

| Extra | Remote control winch |

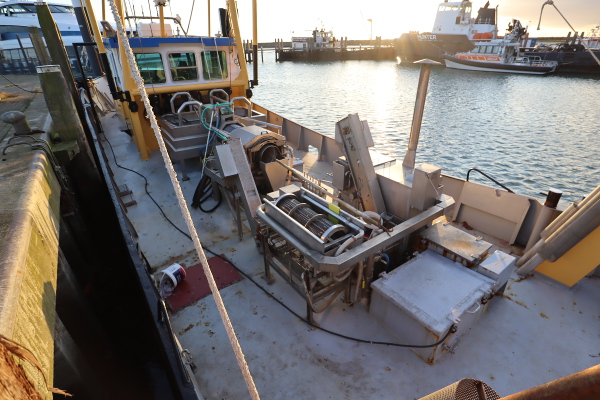

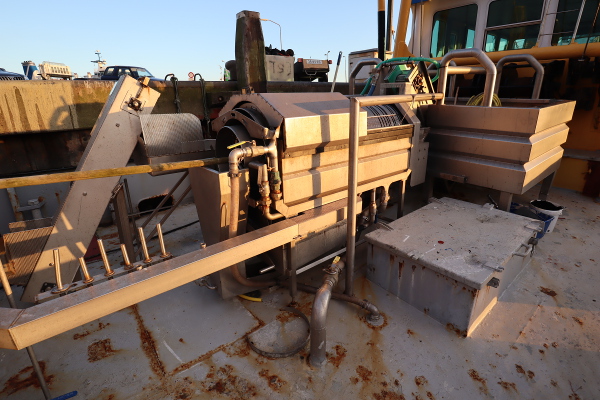

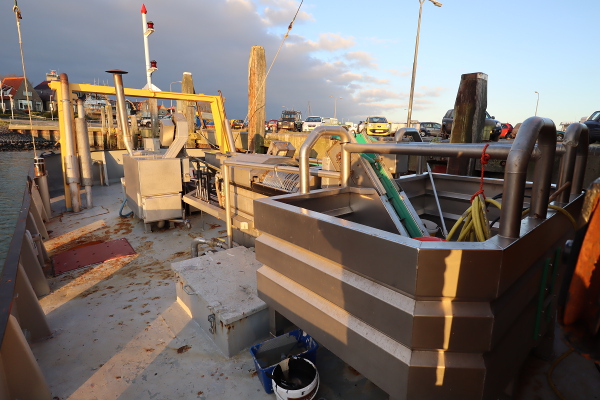

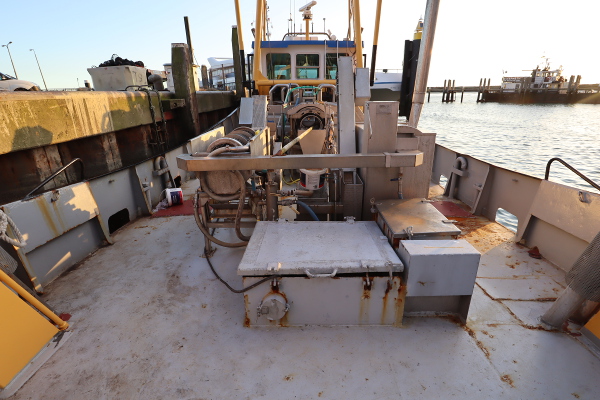

| Fish handling | Complete shrimp processing line on deck |
| incl. kettle, belt, dump bins etc. | |

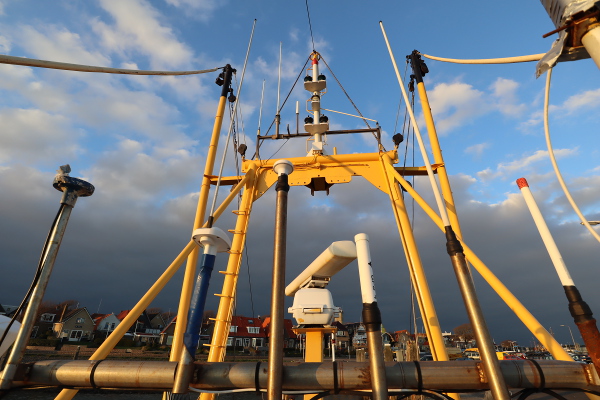

| Mast | Portal mast and 2 beams |
Price € 0
